Professional manufacturer for architectural landscape lighting

1x3W 2 Way LED Walkway Lights

Model: LS-DB202
LED Source: CREE
Power: 1X3W
LED Color: 2700K-6500K/R/G/B/RGB
Input Voltage: DC12V/DC24V or AC100-240V
Beam Angle: 2 way
IP Rate: IP67



  • PRODUCT DETAIL
  • Dimension drawing
  • APPLICATION
  • Why choose our Outdoor LED Lighting?

2 sides illumination led low voltage recessed floor lights, 3w Cree light source outdoor walkway lights, stainless steel front cover parking lights
These floor lights can make high voltage 240V or 120V & low voltage 12/24VDC, which are designed to be mounted into a deck or can be recessed into any concrete or paving surface.
3W is the ideal choice when used around steps & stairs, it will make the stairs hard to see if too bright. Our outdoor walkway lights all come with a mounting sleeve, these are required when setting the lights into poured cement type products.

Features:
* Save energy, low power consumption, high efficient light.

* Included ABS plastic mounting sleeve allows pre-pouring the sleeve in concrete, then installing fixtures later
* Solid-state construction makes for shockproof and strong pressure resistance
* Stainless steel face rim designs for anti-corrosion performance
* Protection grade is IP67, waterproof and dustproof, good for outdoor use.
* No UV or IR radiation, lifetime reaches up to 50,000 hours.

TECHNICAL DATA:

Model Light Source Power (Watt) LED Brand Input Voltage LED Color Beam Angle IP Rating IK Rate
LS-DB202 1X3W 2.5W CREE DC24V/12V
AC240V/120V
2700-6500K/R/G/B 1 way IP67 10
LS-DB202R 1X3W 3.2W EPISTAR DC24V/12V RGB 3 in 1 1 way IP67 10



High Quality LED Deck Light
Stainless Steel SUS 316# Front Cover
Product Model: LS-DB202

outdoor deck lighting certificate & led color

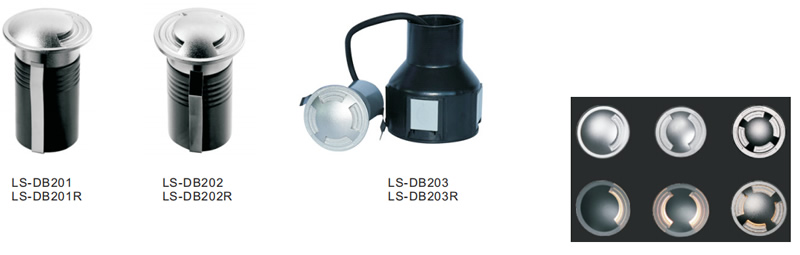

low voltage deck lighting product photo

outdoor deck lighting dimension drawing

exterior deck lighting parameters

Product Specifications:
Housing: 12# Die-casting dark grey powder-coated aluminum, T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover: Stainless steel SUS 316#
Light Window: Tempered glass. T=8mm
Lens: Optical lens, efficiency ≥90%
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w/mk
Power Cable:
H05RN-F 2X1.0mm² L=0.5M(low voltage)
H05RN-F 3X0.75mm² L=0.5M(high voltage)
H05RN-F 4X0.75mm² L=0.5M(RGB color)
Mounting Sleeve: ABS
Dimmable Support:Triac/PWM/0-10V/DALI/DMX512(internal)



Dimension drawing

led products

APPLICATION

Applications:
Led exterior stair lights are specially designed to be applied in wall, steps, courtyard, stages, recessed wall, lawns, parks, parking lots and gardens and it can be installed in the pavement, baseboards, etc.

led ground lights outdoor



Why choose our Outdoor LED Lighting?

Why choose our Outdoor LED Lights?
1. More than 10 years experience in the lighting field

2. Competitively priced with 2-5 years warranty
3. Quality can be compared to the best in the industry
4. Small mixed order to support your test quality
5. Fast delivery to reduce your stock pressure
6. A wide selection of various outdoor landscape lighting to meet your different request of different projects
7. Except for underwater lights, all other lighting items can make high voltage 240V or 120V & low voltage 24VDC
8. Premium stable quality help you to win more markets
