Professional manufacturer for architectural landscape lighting

4 Way Outdoor Driveway Lights

Model: LS-DB503
LED Source: OSRAM

Power: 3.6W
LED Color: 2700K-6500K/R/G/B/RGB
Input Voltage: DC12V/DC24V or AC100-240V
Beam Angle: 3 way
IP Rate: IP67

  • PRODUCT DETAIL
  • APPLICATION
  • Dimension Drawing

Stainless Steel 316# Cover Recessed Driveway Lights, IP67 Side View 4 Way LED Outdoor Driveway Lighting
This light can make low voltage 24VDC & high voltage 240V or 120V , are designed to be mounted into a deck or can be recessed into any concrete or paving surface.  In a dark grey powder-coated aluminum and stainless steel 316# front cover, ROHS compliant & CE certified.
In Ground LED Drive over Lights is for illuminating ground surfaces both indoors and out. Optionally available with one or two or four light sectors for different lighting situations.

Features:
* Save energy, low power consumption, high efficient light.

* Included ABS plastic mounting sleeve allows pre-pouring the sleeve in concrete, then installing fixtures later
* Solid-state construction makes for shockproof and strong pressure resistance
* Stainless steel face rim designs for anti-corrosion performance
* Protection grade is IP67, waterproof and dustproof, good for outdoor use.
* No UV or IR radiation, lifetime reaches up to 50,000 hours.

TECHNICAL DATA:

Model Light Source Power (Watt) LED Brand Input Voltage LED Color Beam Angle IP Rating IK Rate
LS-DB503 32*SMD2835 3.6W OSRAM DC24V/12V
AC240V/120V
2700-6500K 4 way IP67 10
LS-DB503R 18*SMD5050 4.2W EPISTAR DC24V RGB 3 in 1 4 way IP66 10

High Quality LED Driveway Lights
Stainless Steel SUS 316# Front Cover
Product Model: LS-DB503
outside driveway lights certificate & led color

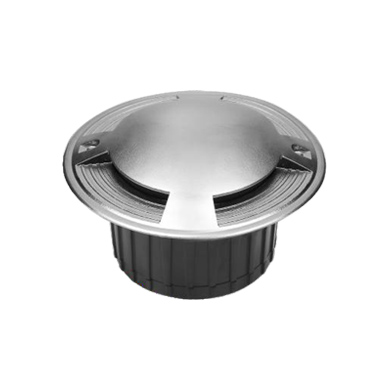

recessed driveway lights product photo

outdoor driveway lighting dimension drawing

recessed driveway lights parameters



Product Specifications:
Housing: 12# Die-casting dark grey powder-coated aluminum, T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover: Stainless steel SUS 316#
Light Window: Tempered glass. T=8mm
Lens: Optical lens, efficiency ≥90%
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w/mk
Power Cable:
H05RN-F 2X1.0mm² L=0.5M(low voltage)
H05RN-F 3X0.75mm² L=0.5M(high voltage)
H05RN-F 4X0.75mm² L=0.5M(RGB color)
Mounting Sleeve: ABS
Dimmable Support: Triac/PWM/0-10V/DALI/DMX512(internal)

Why choose our Outdoor LED Lights?
1. More than 10 years experience in the lighting field

2. Competitively priced with 2-5 years warranty
3. Quality can be compared to the best in the industry
4. Small mixed order to support your test quality
5. Fast delivery to reduce your stock pressure
6. A wide selection of various outdoor landscape lighting to meet your different request of different projects
7. Except for underwater lights, all other lighting items can make high voltage 240V or 120V & low voltage 24VDC
8. Premium stable quality help you to win more markets

Dongguan Leysun Light Co., Ltd.
High Quality Outdoor Landscape & Architectural LED Lighting Manufacturer

APPLICATION

Application:
LED drive over lights is specially designed to be applied in wall, steps, courtyard, stages, recessed wall, lawns, parks, parking lots and gardens and it can be installed in pavement, baseboards, etc.

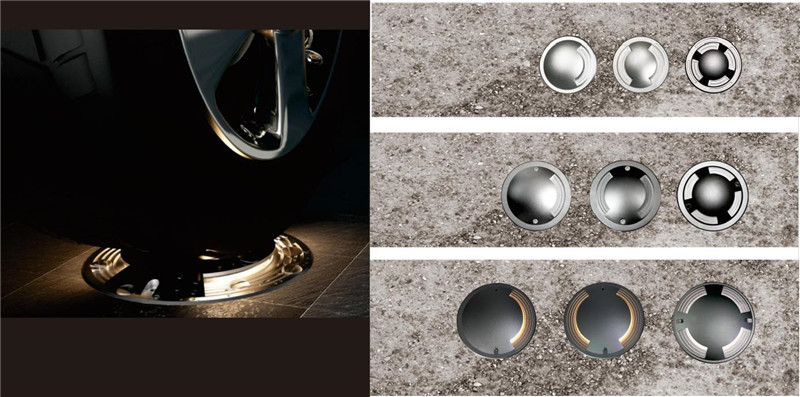

outdoor parking lot lights



Dimension Drawing

end of driveway lights
