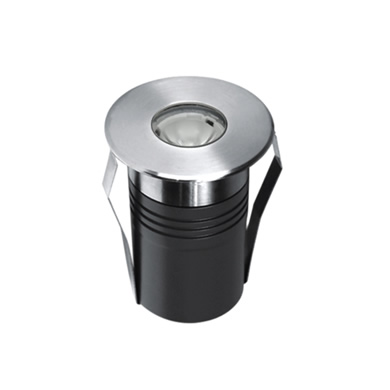

55mm 1x3W LED Deck Lights

Place of Origin: Guangdong, China
Brand Name: LEYSUN
Certification: CE and RoHS
Price: Negotiable based on quantity
Packaging Details: Neutral Package
Delivery Time: 5~25 days depends on order quantity
Payment Terms: L/C, T/T, Western Union, PayPal

  • PRODUCT DETAIL

Cree 3W LED deck stair lighting, IP67 outdoor stair lights
Exterior led deck lights can make low voltage 12v or 24VDC OR high voltage 240V or 120V & , are designed to be mounted into a deck or can be recessed into any concrete or paving surface.
Round and square two front covers optional.
3W is the ideal choice when used around steps, it will make the stairs hard to see if too bright. Our deck lights all come with a mounting sleeve, these are required when setting the lights into poured cement type products.

Features:
* Save energy, low power consumption, high efficient light.
* Included ABS plastic mounting sleeve allows pre-pouring the sleeve in concrete, then installing fixtures later
* Solid-state construction makes for shockproof and strong pressure resistance
* Stainless steel face rim designs for anti-corrosion performance
* Protection grade is IP67, waterproof and dustproof, good for outdoor use.
* No UV or IR radiation, lifetime reaches up to 50,000 hours.

High Quality LED Deck Lights
Stainless Steel SUS 316# Front Cover
Product Model: LS-DA401

12v deck lights certificate & led color

12v deck lights certificate & led color

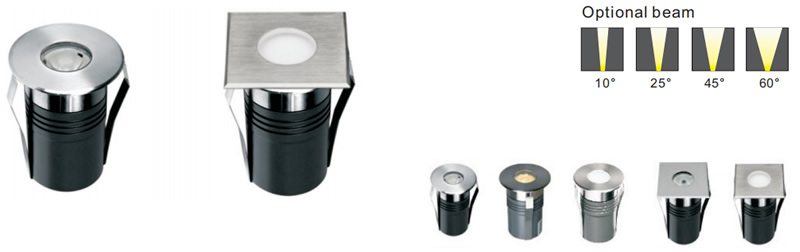

led deck lights product display

led deck lights product display

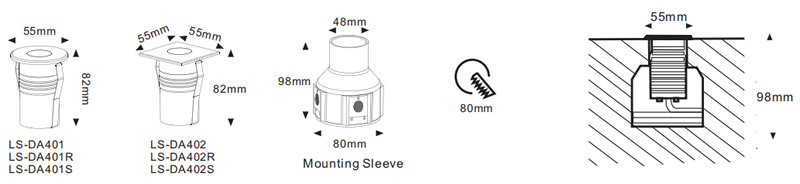

led deck lights dimension drawing

led deck lights dimension drawing

deck lights parameters

deck lights parameters

deck lights lighting effect
Applications:
Recessed ground light series is designed to light walls, facades, columns, bridges, monuments and trees.

12v deck lights

Product Specifications:
Housing: 12# Die-casting dark grey powder-coated aluminum, T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover: Stainless steel SUS 316#
Light Window: Tempered glass. T=8mm
Lens: Optical lens, efficiency ≥90%
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w/mk
Cable Gland: IP-68 PG-9 PVC
Power Cable:
H05RN-F 2X1.0mm² L=0.5M(low voltage)
H05RN-F 3X0.75mm² L=0.5M(high voltage)
H05RN-F 4X0.75mm² L=0.5M(RGB color)
Mounting Sleeve: ABS
Dimmable Support: Triac PWM 1-10V Dali

Why choose our Outdoor LED Lights?
1. More than 10 years experience in the lighting field

2. Competitively priced with 2-5 years warranty
3. Quality can be compared to the best in the industry
4. Small mixed order to support your test quality
5. Fast delivery to reduce your stock pressure
6. A wide selection of various outdoor landscape lighting to meet your different request of different projects
7. Except for underwater lights, all other lighting items can make high voltage 240V or 120V & low voltage 24VDC
8. Premium stable quality help you to win more markets
