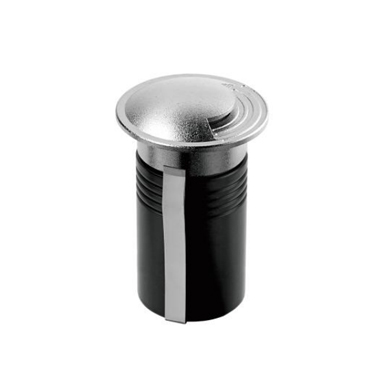

55mm 3W LED Exterior Stair Lights

Stainless steel 316# cover low voltage led walkway lights, 3W Cree led light source outside pathfinder lights
These walkway lights can make high voltage 240V or 120V & low voltage 12/24VDC, which are designed to be mounted into a deck or can be recessed into any concrete or paving surface.
3W is the ideal choice when used around steps & stairs, it will make the stairs hard to see if too bright. Our pathfinder lights all come with a mounting sleeve, these are required when setting the lights into poured cement type products.

Features:
* Save energy, low power consumption, high efficient light.
* Included ABS plastic mounting sleeve allows pre-pouring the sleeve in concrete, then installing fixtures later
* Solid-state construction makes for shockproof and strong pressure resistance
* Stainless steel face rim designs for anti-corrosion performance
* Protection grade is IP67, waterproof and dustproof, good for outdoor use.
* No UV or IR radiation, lifetime reaches up to 50,000 hours.

TECHNICAL DATA:

High Quality LED Stair Lights
Stainless Steel SUS 316# Front Cover
Product Model: LS-DB201

Product Specifications:
Housing: 12# Die-casting dark grey powder-coated aluminum, T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover: Stainless steel SUS 316#
Light Window: Tempered glass. T=8mm
Lens: Optical lens, efficiency ≥90%
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w/mk
Power Cable:
H05RN-F 2X1.0mm² L=0.5M(low voltage)
H05RN-F 3X0.75mm² L=0.5M(high voltage)
H05RN-F 4X0.75mm² L=0.5M(RGB color)
Mounting Sleeve: ABS
Dimmable Support: Triac/PWM/0-10V/DALI/DMX512(internal)

Applications:
Led exterior stair lights are specially designed to be applied in wall, steps, courtyard, stages, recessed wall, lawns, parks, parking lots and gardens and it can be installed in the pavement, baseboards, etc. It is not suitable for use underwater.
